Shear Punch Drill Fittings

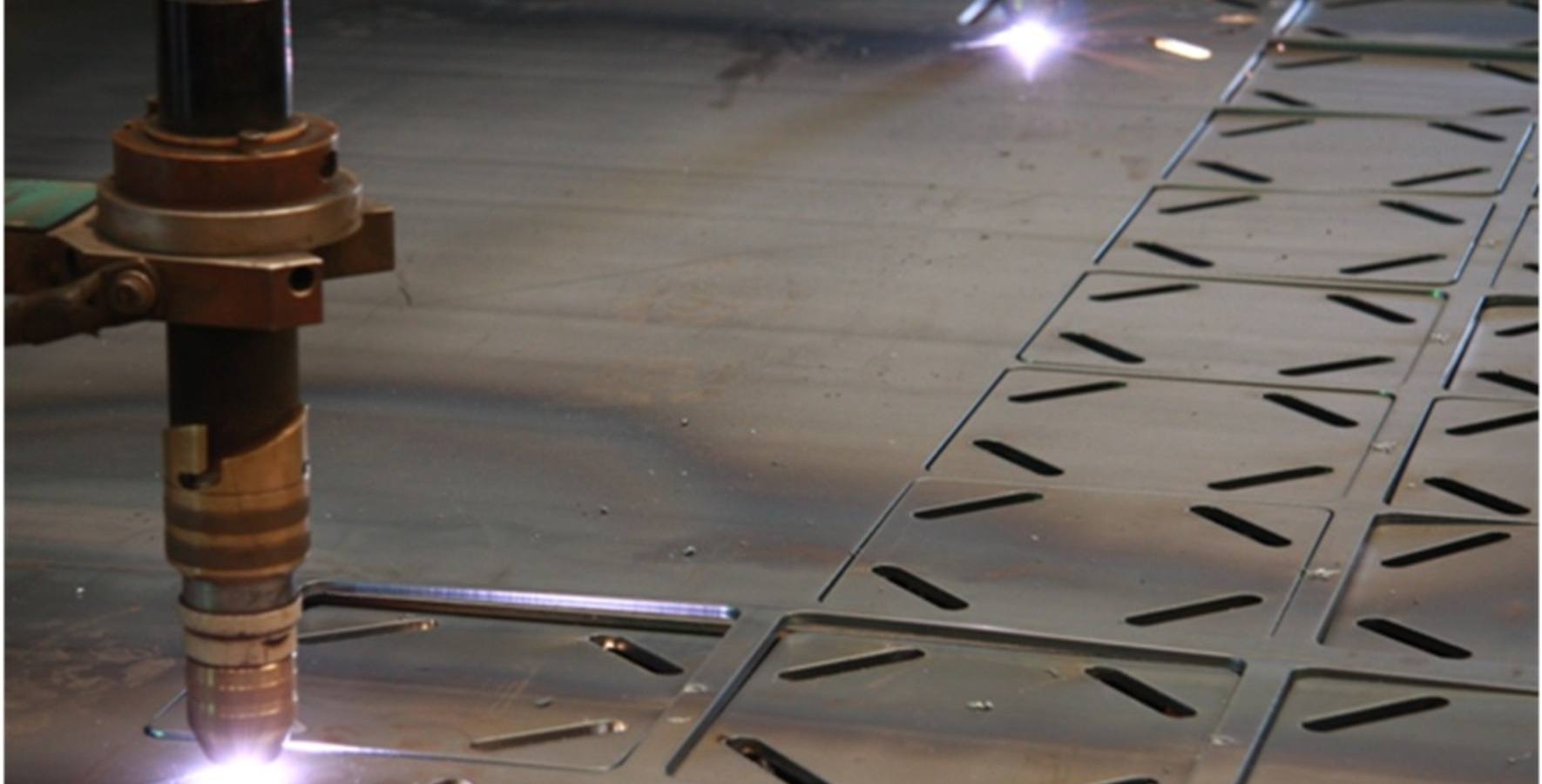

Our team offers reliability and accuracy with continuous investment in the latest technology. The V304 Plasma Bevel machine is the latest addition to our plate cutting dept offering weld preps, bevelled edges and has True Hole Technology®.

We have the ability to process both flat and angled sections, with both straight and bevel cut edges from our comprehensive range of stock to meet all your fitting requirements.

Technical Features:

  • Angle sections
  • Lengths up to 7000mm
  • Width/height from 50x50mm up to 200x200mm
  • Thickness from 5mm to 16mm

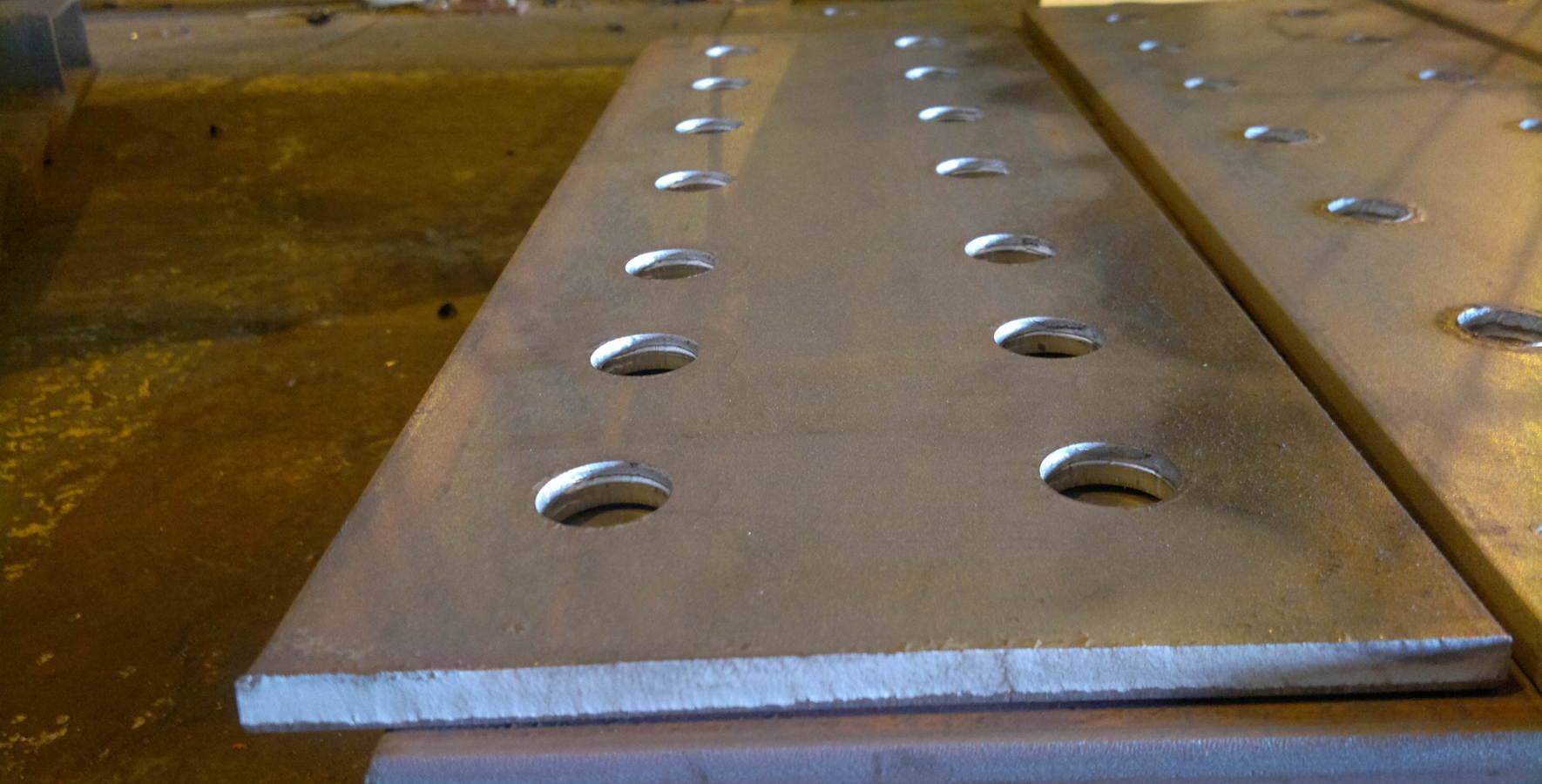

  • Flat Sections
  • Lengths up to 6000mm
  • Width from 50mm up to 500mm
  • Thickness from 5mm up to 25mm

Our Services Include:

  • Processing of flat & angle sections
  • CNC Drilling
  • Hard stamp ID marking
  • Punched slotted holes
  • Bevel cuts +/-45°
  • Countersinking
  • Automatic machine reading of DSTV files or full program by experienced CAD operators
  • Full range of hole sizes
  • Ability to punch both angle legs

Want to know more? Get in touch with us today...
